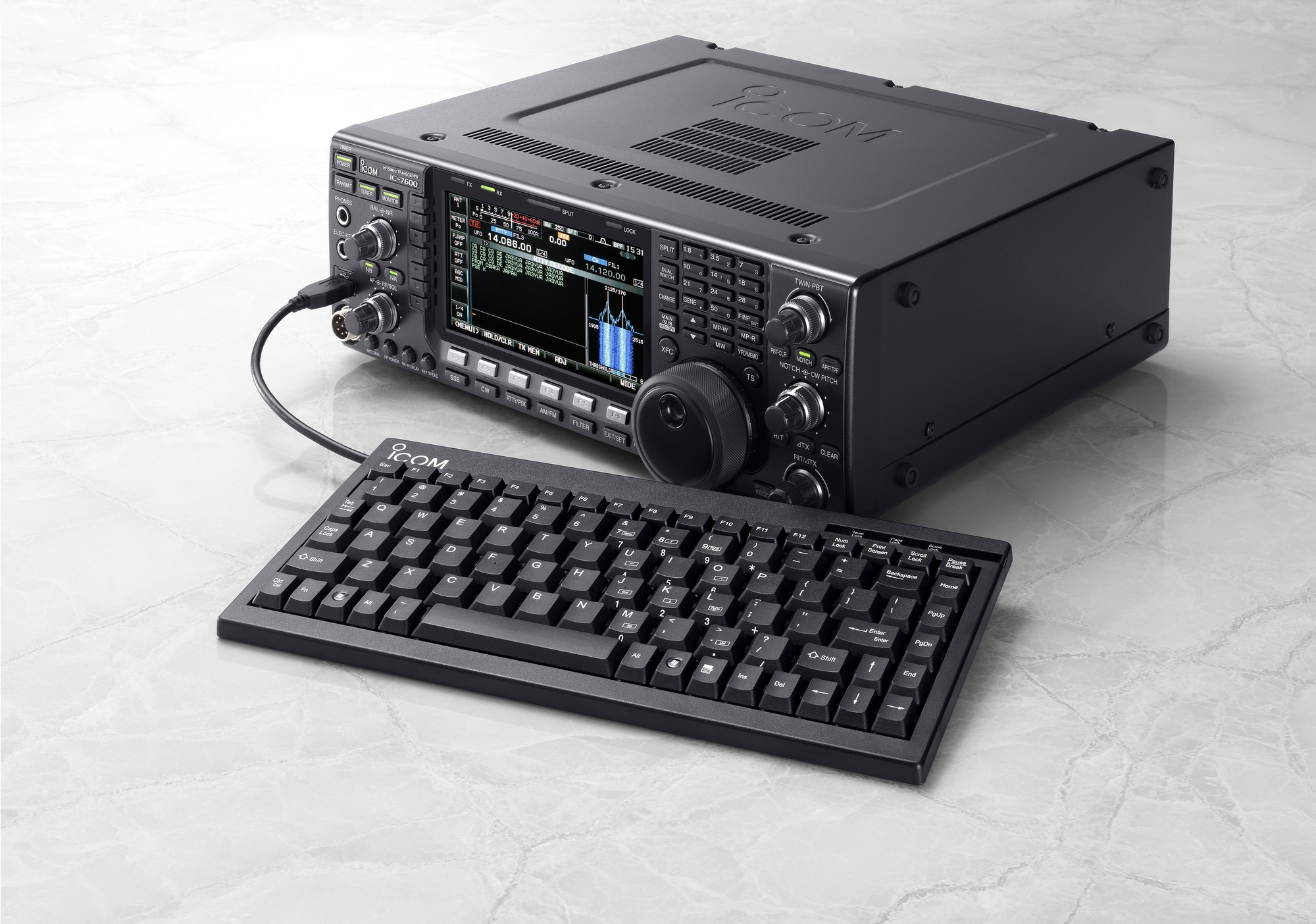

Icom IC-7600
| Type: |
Amateur HF/VHF Transceiver |
| Frequency Range: |
RX: 0.03-60 MHz
TX: 10-160 m + WARC/6 m |
| Modes: |
AM/FM/SSB/CW/RTTY/PSK31 |
| RF Power output: |
100/100 W |
| Memories: |
101 (99 Regular, 2 Scan Edges) |
| Voltage: |
13.8VDC |
| Current Drain: |
RX: ? A
TX: Max ? A |
| Aerial Input: |
50 ohms, SO-239 |
| Dimensions (W*H*D): |
287 x 123 x 316 mm |
| Weight: |
9 Kg |
| Manufactured: |
Japan, 2008-20xx |
| Other: |
IF DSP. Built-in RTTY demodulator.
Wide screen color TFT. Built-in auto-ATU. Built-in RTTY/PSK31 encoder/decoder
IP3 = +30 dBm. DSP. Spectrum scope. USB-connectors. Transverter port.
Suggested price is somewhere in the $4000 range. |
| Related Documents: |
User Manual (14.8 MB)
Brochure (4.23 MB) |
 |
